VB350

Dual Lens PTZ Video Bar With a Hybrid 18X Zoom for Medium & Large Rooms

Awards & Certifications

Dual Lens PTZ Video Bar With a Hybrid 18X Zoom for Medium & Large Rooms

With a streamlined design, dual 4K lenses, seamless lens switching, upgraded audio technology, and simple setup, the VB350 is the ultimate all-in-one solution for next-level video meetings. Level up to premium audio and video by using this powerful new video bar in your mid-to-large conference rooms.

Hybrid 18X Zoom Captures Farther and Clearer

Elevate your video meeting experience with the VB350 and its dual 4K lens technology. Boasting a 113° field of view and hybrid 18X zoom, the VB350 captures crystal-clear images of the foreground and background in meeting rooms up to 7 meters deep.

Stable Lens Switching Enables Inclusive and Engaging Hybrid Teamwork

Don’t let jarring lens transitions interrupt your meetings. The VB350’s stable lens switching captures attendees in sharp detail, even when they sit far from the camera. Enjoy seamless conversations thanks to ultra-smooth lens shifting

Conversation View Reduces Camera Movement

Give remote participants a smoother image with Conversation View. In audio tracking mode, the camera will track whoever speaks continuously. But when others join the conversation, the camera switches to auto framing mode and captures all attendees instead of individual speakers.

Audio Fence Eliminates Background Noise

Say goodbye to unwanted noise with AVer’s audio fence technology. This feature blocks out background distractions and captures only the voices within the camera’s viewing area. Now you can have uninterrupted remote collaboration even in open workspaces.

14-Microphone Array Delivers Lifelike Audio

Enjoy clear and natural-sounding voices in your meetings. The VB350 is equipped with a 14-element microphone array pickup that precisely reproduces resonant sound from up to 10 meters away. Experience seamless conversations and lifelike audio that makes your remote meetings feel like in-person gatherings.

Professional Clarity with a 16X total Zoom

Enhance your communication by showing every detail precisely and smoothly. The VC540 is embedded with a 16X total zoom and multi-coated autofocus optics to present complex product details in crystal-clear quality.

Cutting-Edge 4K Ultra HD

The VC540 uses a Sony™ high-quality sensor and multi-lens glass to provide the sharpest video possible. Also, an advanced image-processing engine allows you to display natural, vividly colored details even in challenging lighting conditions and on very low-latency networks.

Product Overview

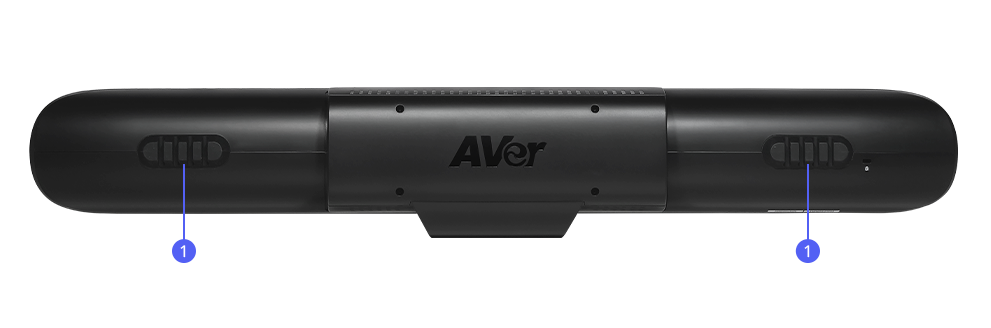

Front

Back

slide

Front

Back

slide

SEE all specs

Display
Screen Size
55″

Resolution
3840×2160(16:9)

Brightness
350nits

Contrast Ratio (Typical)
4000:1

Operation Hours
16/7

Color Gamut
92% (DCI-P3, CIE 1976)

Haze
2%

Brightness (Typ.)
350 nit

Pixel Pitch (mm)
0.315 x 0.315

Diagonal Size
55

Measured
54.6″ / 138.7cm

Type
VA

Orientation
Landscape / Portrait

Active Display Area
1209.6(H) x 680.4(V)

Connectivity
External Control
RS232C (in/out), RJ45

Video Input
HDMI 2.0 (3)

USB Input
USB 2.0 x 2

Audio Output
Stereo mini Jack

Power
Power Supply
AC 100 – 240 V, 50/60 Hz

Power Consumption (Sleep Mode)
less than 0.5W

Power
Consumption
(Max[W/h])
143

Power Consumption
(Typical[W/h])
96

Audio Out
Stereo Mini Jack

RS232 In
Yes

RS232 Out
Yes

Features
Key
UHD Signage with
Built-in MagicInfo S10,
SSSP
10.0

Special H/W
Symmetric Design
(same with QxR)
Center IR Temperature Sensor

Special S/W
Workspace
(Microsoft365/VMWare/RDP)
Custom Home
Auto Source Switching &
Recovery
Dicom Simulation Mode
Director Mode
SmartView+(PC)
Upgradable Web-Engine
Tizen Enterprise Platform
SmartView+(mobile)
Video Conference Solution
[end of June~]
Smart Calibration

12/7 Operation
Yes

Internal Player
Processor
1.7GHz Quad-Core CPU

Operating System
Tizen 6.5

Storage (FDM)
8GB

Dimensions
Packaging (W x H x D)
1402 x 858 x 163

Set Dimensions (mm)
1235.1 x 707.9 x 46.3

Weight
Package Weight
23.6

Set Weight
18.1

Accessories
Included in Box
Quick Setup Guide,
Warranty Card,
Power Cord
RS232C(IN) Gender
Remote Controller & Batteries

Optional Stand
STN-L4355G

Specialty
CML400XR

Optional Mount
WMN4070SG (Land Only)
WMN750ME

Mechanical Specs
VESA Mount
200 X 200

Bezel Width (Top/Side/Bot)
(mm)
9.2mm(U/L/R), 11.2mm(B)

VESA Mount Screw
(Min~Max) M8, 29~30

Bezel Width (mm)
9.2mm(U/L/R), 11.2mm(B)

Sound Speaker
Type 10W 2ch

Operation Conditions
Temperature
0℃~ 40℃

Humidity
10~80%

Certification
Safety
60950-1 / 62368-1

EMC
Class B

Environment ENERGY
STAR 8.0, EPEAT

IP Rating
IP5x

Security
802.1x(WPA2 Enterprise) :
EAP-TLS, EAP-TTLS, EAP-PEAP

SEE all specs

Camera

4K dual-lens technology delivers a wide 113° field of view (FOV) with 18X zoom
4K 3X varifocal lens: FOV (D/H/V) 92°/81°/50°
4K fixed lens: FOV (D/H/V) 113°/105°/71°
Sony 4K sensor: ultra-crystal-clear image in any lighting
Frame rate: (16:9) 1280 x 720 at 60, 30, 15fps; 4K, 3264 x 1836, 2560 x 1440, 1920 x 1080, 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 30, 15fps
Adjustable audio fence: Freedom to define wide/ medium/ narrow view fence
SmartFrame & SmartSpeaker: Automatic tracking and FOV adjustment to fit all participants and focus on the speaker
Presentation mode: Voice-triggered tracking on both defined areas and speakers
Smart gallery* function enhances visibility
Gesture control for intuitive camera control
WDR, white balance and more image settings via PTZApp 2
Minimum focus distance: 100 cm
People counting API: Enterprises and third-party software providers can obtain people-counting and meeting-interval data tor better understand meeting space usage

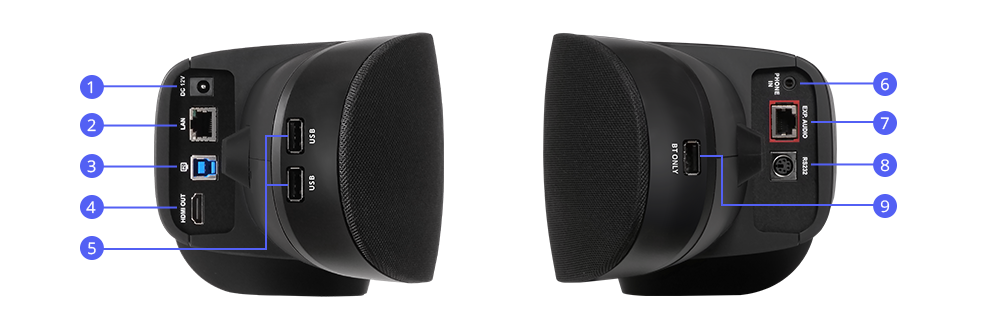

Connectivity

12V/5A power adapter
Mini DIN 6 for RS-232 connection
USB 3.1 type B port, backward compatible with USB 2.0
HDMI out connection (USB to HDMI adapter)
Phone-in (3.5 mm audio Jack)/speaker-out for HA system*
RJ45 ports x2: one for Ethernet, one for audio expansion speakerphone / microphone
USB 2.0 type A x3: Wireless connection**, USB to support IFP USB touch back, and expansion port

Motorized Pan & Tilt Movement

Pan: Total horizontal viewing area 165°
Tilt: Total vertical viewing area 101°
10 camera presets

Video Format

YUV, YUY2, M-JPEG
Network video compression formats: H.264
Network protocols: RTSP, RTMP

USB

3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB Video), UAC 1.0 (USB Audio)

Control
IR remote control
WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
VISCA/pelco P/pelco D via RS-232/VISCA over IP
UVC/UAC plug-and-play
PTZApp 2

Hardware Spec*

Processor: 3.2 GHz Intel® Core™i5-4460 or later

4 GB RAM

USB 3.1 port, backward compatible with USB 2.0 port

Optional Accessories

Mini DIN 6 to RS-232 adapter
TV VESA mount
10 m/20 m expansion microphone
10 m/20 m expansion speakerphone
10 m/20 m/30 m USB 3.1 extender cable
5 m USB 2.0 type B to type A cable
Wireless dongle (for connecting with mobile phone)
Audio-out converter (TRS female to TRRS male)

Warranty**

Camera: 3 years
Accessories: 1 year

Security and Mount

Wall-mount bracket (included)
TV VESA mount kit (optional)
Kensington security lock

Package contents

VB350 unit
Power adapter & cable
USB 3.1 type B to type A cable (3 m)
USB 3.1 type A to type C adapter
QR code card
Wall-mount bracket
Tripod Screws
Remote control
Wall-mount drill paper

Environmental Data

Operation temperature: 0°C ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20°C ~ 60°C
Storage humidity: 20% ~ 80%

System Requirement
Software
Windows® 7/10/11
Mac OS X 10.14 or later
Chromebox 3 version 94.0.4606.114 or later
Hardware
3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0

Compatible Applications

Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet™, Intel®Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit, V Cube

Dimensions

Package dimensions: 872 mm (L) x 197 mm (W) x 260 mm (H)
Package weight: 7.4 kg
Camera: 791 mm (L) x 128 mm (W) x 126 mm (H)/3.3 kg
Remote control: 150 mm (L) x 42 mm (W) x 19 mm (H)/50 g
